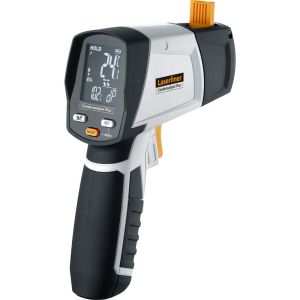

CondenseSpot Plus


Infrared thermometer for locating thermal bridges and condensation

Produktbild

Description:
The CondenseSpot Plus is suitable for preventing damage to the building fabric by locating thermal bridges and condensation. The infrared thermometer determines the surface temperature, ambient temperature, relative humidity and dew point temperature. Temperature measurement is also possible in difficult-to-reach places and in hazardous measuring zones. The practical multifunction display shows different measured values simultaneously.


Technical Data:

Technical Data082.046A CondenseSpot Plus
TitleInfrared thermometer
Auto-Hold
Alarm
einstellbarer Emissionsgrad
Luftfeuchte
Oberflächentemperatur
Taupunkttemperatur
Umgebungstemperatur
Wandfeuchte-Warnung
Wärmebrücken-Warnung
Laseranvisierung
Measuring range ambient temperature-20°C … 65°C
Accuracy ambient temperature0°C … 50°C (± 1°C)
<0°C and >50°C (± 2.5°C)
Measuring range infrared temperature-40°C ... 365°C
Accuracy infrared temperature-40°C … 0°C (± (1°C + 0.1°C/1°C))
0°C … 30°C (± 1°C or ± 1%,
depending on the higher value)
>30°C (± 2°C or ± 2%,
depending on the higher value)
Measuring range humidity (relative)1% … 99%
Accuracy (absolute) humidity (relative)20% … 80% (± 3%)
<20% and >80% (± 5%)
Laser8-point laser circle
Laser wavelength650 nm
Laser class2 / < 1 mW (EN 60825-1:2014/AC:2017)
Power supply2 x 1.5V LR6 (AA)
Operating timeapprox. 20 hours
Temperatur (Arbeitsbedingungen)0°C … 50°C

Package Contents:
  • CondenseSpot Plus
  • batteries

Documentation:

Categorie:
Humidity and moisture measuring devices

Industrial Quality (IQ) / Professional Technology (PT):
OrangeLine
