SoundTest-Master


Noise level measuring instrument with integrated long-term storage

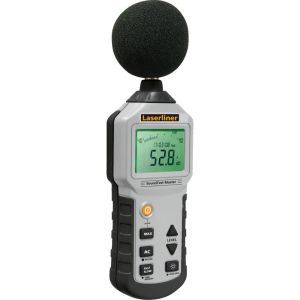

Produktbild

Description:
This precision noise level measuring instrument uses frequency weighting filters according to dB (A) and dB (C) standard curves. A choice of two time weighting factors (fast/slow) allows optimum adaptation to noise dynamics The selectable analogue indicator provides a visual assessment of the test area. The measurement is taken with a long-term recording function with 16,000 storage points or real-time logging on a PC using the supplied software. The device has analogue DC and AC outputs and an illuminated display. Calibration and adjustment is by means of a standard 94 dB/1 kHz noise level calibrator.


Technical Data:

Technical Data082.070A SoundTest-Master
TitleNoise level measuring instrument
Schallpegel dB(A)/dB(C)
Zeitbewertung Fast/Slow
Echtzeitaufzeichnung
Echtzeitstempel
Datenübertragung
Langzeitspeicher
SensortypMicrophone: Electret condenser
PortsAC voltage output:
0.7 Vrms at full deflection,
approx. 600 ? output impedance
DC voltage output:
10 mV/dB,
approx. 100 ? output impedance
Power supply DC 9V ? 500 mA (ripple < 100 mV)
Messbereich Schalldruckpegel30 dB … 130 dB (automatisch)
40 dB … 80 dB (manuell)
50 dB … 90 dB (manuell)
60 dB … 100 dB (manuell)
70 dB … 110 dB (manuell)
80 dB … 120 dB (manuell)
90 dB … 130 dB (manuell)
Display updateDigital: 2 measurements/s
Analogue: 20 measurements/s
Memory16000 measurements
PortOptoinsulated RS232
Power supply6 x 1.5V LR03 (AAA)
Temperatur (Arbeitsbedingungen)0°C … 40°C

Package Contents:
  • SoundTest-Master
  • Software
  • USB cable
  • batteries
  • carrying case

Documentation:
Productinfosheet not available.

Categorie:
Environment and special measuring devices

Industrial Quality (IQ) / Professional Technology (PT):
BlackLine
