VideoScope XL


Compact inspection camera for visual inspections of areas which are difficult to access

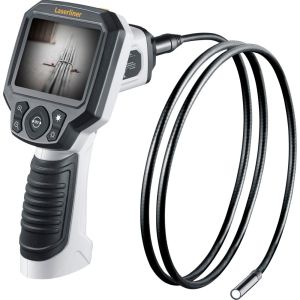

Produktbild

Description:
With the VideoScope XL, specific problems can be localised in places that are difficult to reach. The Video Inspector shows what is behind or in objects, walls, pipes, cables etc., even under very poor lighting conditions. The small, waterproof camera head allows a variety of applications. The image always remains clearly discernible on the monitor through rotation and mirroring.


Technical Data:

Technical Data082.114A VideoScope XL
TitleCompact inspection camera
Live-Anzeige
Objektbeleuchtung
Bildausrichtung
Digitalzoom
Durchmesser Kamerakopfø 9 mm
Anzahl LED-Leuchtmittel4
Field of view (fov)53°
Schärfentiefe (DOF)3 … 7 cm
Length of probe3.5 m
Screen type3,5" TFT-Farbdisplay
MemoryMicro-SD memory card up to 8 GB
Protection classBase unit:
IP 54,
dust and splash proofing
Camera probe:
IP 68 (immersion depth 1.5 m,
60 min.)
Power supply4 x 1.5V LR6 (AA)
Operating timeapprox. 4 hours
Temperatur (Arbeitsbedingungen)0°C … 45°C

Package Contents:
  • VideoScope XL 3.5 m
  • batteries

Documentation:

Categorie:
Video inspection

Industrial Quality (IQ) / Professional Technology (PT):
OrangeLine
