MultiCable-Checker


Cable tracer set with transmitter and receiver for LAN, SAT, TV, telephone and audio cables

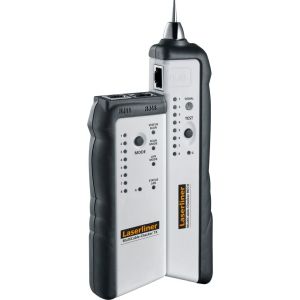

Produktbild

Description:
This cable tracer set with transmitter and receiver analyses LAN, SAT, TV, telephone and audio cable in off-circuit electrical systems. Cable routing can be traced to a measurement depth of 5 cm with the non-contact receiver. A loud test signal sounds when the selected cable is identified. The device has an integrated continuity tester and a wide range of accessories for checking the most commonly used plug connections (RJ 11, RJ 45, BNC, TV coaxial, F adapter). Universal test terminals are available for connecting to any conductor. The user can clearly identify the different acoustic signals using the additional headphones. The test area can be clearly lit using the integral torch.


Technical Data:

Technical Data083.062A MultiCable-Checker
TitlePrüfgeräte-Set
optische und akustische Verfolgung des Sendesignals
Leitungsverfolgung
Durchgangsprüfung mit Signalton
Netzwerk-Leiterzuordnung
Kabel-/LAN-/SAT-/BNC-/TV-/RJ 45-/RJ 11-Prüfung
Output signal8 Vss (peak-to-peak)
max. 10 mA (Transmitter)
max. 30 mA (Receiver)
Line / voltage locationScan mode: 0 … 5 cm
max. testing length: 3 km
Temperatur (Arbeitsbedingungen)0°C … 40°C

Package Contents:
  • transmitter MultiCable-Checker TX
  • receiver RECV
  • adapter (TV-coax, RJ 45, RJ 11, BNC, F-adapter)
  • test terminals
  • headphones
  • batteries
  • carrying case

Documentation:
Productinfosheet not available.

Categorie:
Electrical meters

Industrial Quality (IQ) / Professional Technology (PT):
OrangeLine
