CableChecker


Cable and conductor tester with transmitter and receiver for LAN, TV and telephone cables

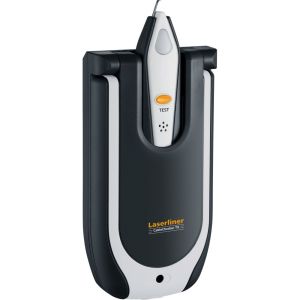

Produktbild

Description:
The cable and conductor tester consists of a sender and a receiver and analyses LAN, TV, telephone, audio and other cables in electrical systems. The sender with integral adapter can be used to easily check the most commonly used plug connections (RJ11, RJ45, TV coaxial). The receiver searches for the transmission signal using non-contact technology and issues a loud test signal to identify the relevant cable. The device can be connected to any conductor using the universal test terminals.


Technical Data:

Technical Data083.065A CableChecker
TitleCable and conductor tester
akustische Verfolgung des Sendesignals
Leitungsverfolgung
Durchgangsprüfung mit Signalton
Kabel-/TV-/RJ 45-/RJ 11-Prüfung
Output signal8 Vss (peak-to-peak)
max. 10 mA (Transmitter)
max. 30 mA (Receiver)
Line / voltage locationScan mode: 0 … 5 cm
max. testing length: 100 m
Power supplyRECV: 4 x 1.5V LR44 (AG13) / TX: 2 x 1.5V LR03 (AAA)
Temperatur (Arbeitsbedingungen)-10°C … 40°C

Package Contents:
  • transmitter CableChecker TX
  • receiver RECV
  • adapter (TV-coax, RJ 45, RJ 11)
  • test terminals
  • batteries

Documentation:

Categorie:
Electrical meters

Industrial Quality (IQ) / Professional Technology (PT):
OrangeLine
