CableTracer Pro (TX+RECV)


Universal, flexible cable tracer set including transmitter and receiver

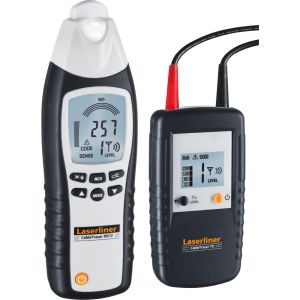

Produktbild

Description:
The line locator, consisting of a sender and a receiver, locates live cables, circuit breakers, fuses, metal tubes and other items. Serious drilling errors can thus be avoided. The sender feeds the signals into the line to be tested. The receiver detects the lines with the fed signal using non-contact technology. Interrupted cables in existing installations and short circuits in installed cables can be determined. The signal coding allows a maximum of seven senders and one receiver to be used, ideal for working with complex installations. Can also function without mains voltage.


Technical Data:

Technical Data083.070A CableTracer Pro
TitleUniversal line detector
optische und akustische Verfolgung des Sendesignals
Leitungsverfolgung
Sendesignaleinstellung
Signalkodierung
einstellbare Empfindlichkeitserhöhung
Gleich-/Wechselspannung
Messbereichsanzeige
Warnung vor 230V-Leitungen
numerische Digitalanzeige
Output signal125 kHz
Line / voltage locationsingle-pole application: approx. 0 … 2 m
two-pole application: approx. 0 … 0.5 m
Voltage detection: approx. 0 … 0.4 m
Overvoltage categoryCAT III – 300V
(no condensation)
DisplayBar display
Power supplyRECV: 1 x 9V 6LR61 (9V block) / TX: 1 x 9V 6LR61 (9V block)
Temperatur (Arbeitsbedingungen)0°C … 40°C

Package Contents:
  • transmitter CableTracer TX
  • receiver RECV
  • connecting cable
  • test prods
  • test clamps
  • batteries
  • carrying case

Documentation:

Categorie:
Electrical meters

Industrial Quality (IQ) / Professional Technology (PT):
BlackLine
